Core plotting features

Choose a plot for the question you want to answer. An embedding shows where cells sit in a UMAP or t-SNE layout; coloring it by a cluster, a gene, or a cell field reveals patterns in that layout. Dot plots and matrix plots summarize marker expression across groups, while distribution plots reveal variation within a group that an average can hide.

CyteArc also provides plots for cluster relationships, modality weights, pseudotime, reference mapping, and comparisons between samples. This tutorial starts with the common views, then adds ways to focus on groups, compose panels, and summarize large datasets as pixels. The plotting API reference describes the full set of options.

Open the example data

This pancreas dataset contains an analysis saved as docs_default. Its live clusters metadata column holds the published cell-type annotations. We use CellField to name that column explicitly and avoid confusing it with the run’s computed clusters.

# Manage local file and directory paths.
from pathlib import Path

# Arrange and save Matplotlib figures.
import matplotlib.pyplot as plt

# Open count stores and run CyteArc analyses.
import cytearc

# Use CyteArc plotting options and diagnostics.
import cytearc.plotting as splt

# Keep routine logs and progress bars out of the results.
cytearc.configure_output(level="WARNING", progress=False)

# Download the prepared example store.
dataset = cytearc.cytebase.connect("cytearc_docs").download_dataset(
    "bastidas-ponce_4K_pancreas-d15_rnaseq",
    destination="cytearc_datasets",
    zarr=True,
)

# Open the count store for this analysis.
ds = cytearc.DataStore(f"{dataset}/data.zarr", nthreads=4)

# Open the saved analysis and its exact results.
run = ds.pipeline.open(label="docs_default")

# Keep the saved UMAP coordinates for the figures.
layout = run["umap"]

# Use the published cell-type metadata for colors and groups.
cell_types = splt.CellField("clusters", label="cell type")

# Inspect the opened store's cells and features.
ds
DataStore has 3696 (3696) cells with 1 assays: RNA Cell metadata: 'I', 'ids', 'names', 'G2M_score', 'RNA_UMAP1', 'RNA_UMAP2', 'RNA_clusters', 'RNA_leiden_cluster', 'RNA_nCounts', 'RNA_nFeatures', 'RNA_percentMito', 'RNA_percentRibo', 'S_score', 'clusters', 'clusters_coarse' RNA assay has 27998 features and following metadata: 'I', 'ids', 'names', 'dropOuts', 'highly_variable_genes', 'nCells'

Started: 2026-10-11T18:54:50.796324Z | Wall time: 11.016 s

Color an embedding

Pass the saved layout and the values you want to show. Here the colors identify cell types.

# Color the UMAP by the published cell-type annotations.
ds.plots.embedding(layout=layout, color_by=cell_types)

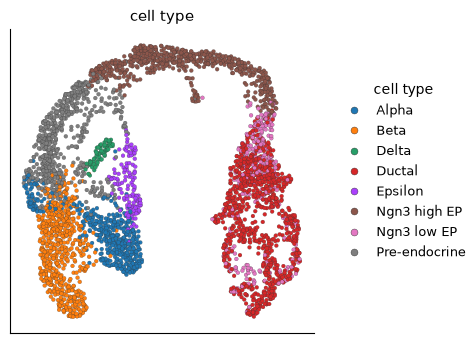

Pancreas UMAP coloured by eight published cell-type annotations, with a separate legend for endocrine, ductal, and progenitor populations.

Started: 2026-10-11T18:55:01.817329Z | Wall time: 0.715 s

A gene name colors cells by expression. A list of genes produces several panels:

# Compare Gcg, Ins2, and Sst expression on separate UMAP panels.
ds.plots.embedding(layout=layout, color_by=["Gcg", "Ins2", "Sst"])

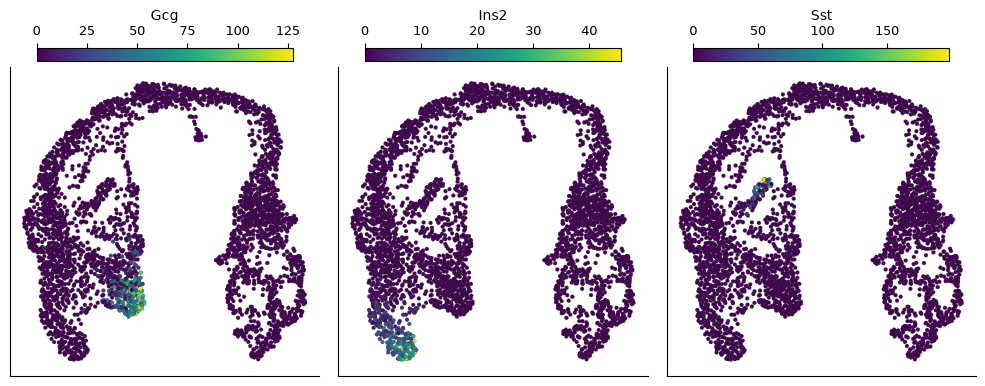

Three pancreas UMAP panels show normalized Gcg, Ins2, and Sst expression. Their strongest signals occupy different regions corresponding to Alpha, Beta, and Delta annotations.

Started: 2026-10-11T18:55:02.536183Z | Wall time: 1.730 s

Compare the expression patterns with the annotated populations. The plot uses assay-normalized expression by default. If a few high values hide the rest, adjust the display scale as shown below.

Make expression easier to see

Use these display changes when the default gene panels are hard to read:

  • NormalizationSpec(transform="log1p") compresses the expression scale.

  • sort_values=True draws high-expressing cells last so other cells do not cover them.

  • ColorScale(quantiles=(0.0, 0.99)) caps the color range at the 99th percentile.

# Show log-transformed Ins2 expression with the upper color range clipped.
ds.plots.embedding(
    layout=layout,
    color_by="Ins2",
    normalization=splt.NormalizationSpec(transform="log1p"),
    sort_values=True,
    color_scale=splt.ColorScale(quantiles=(0.0, 0.99)),
)

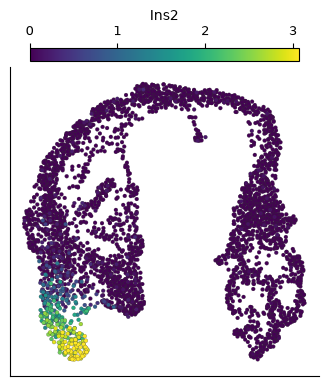

Pancreas UMAP showing log1p-transformed Ins2 expression, with high values drawn last and the colour range capped at the 99th percentile.

Started: 2026-10-11T18:55:04.270522Z | Wall time: 0.685 s

These choices affect the display, not the saved counts. Clipping the color range makes all values above the limit share the same color, so report that choice when presenting a figure.

Summarize markers across groups

A dotplot shows two summaries: color is mean expression, and dot size is the fraction of measured cells whose expression exceeds expression_cutoff (zero by default). A large dot with a low mean indicates widespread low expression; a small dot with a high mean indicates strong expression in a minority of cells. The mean includes cells with zero expression.

# Compare marker expression and detection across the selected groups.
ds.plots.dotplot(
    features=["Gcg", "Ins2", "Sst"],
    group_by="clusters",
)

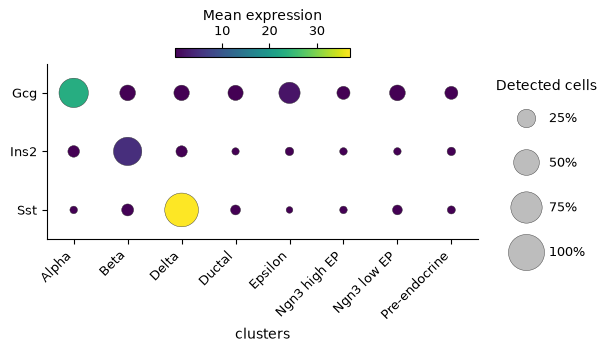

Dot plot of Gcg, Ins2, and Sst across pancreatic cell types. Colour shows mean expression and size shows detection fraction, highlighting Alpha, Beta, and Delta marker patterns.

Started: 2026-10-11T18:55:04.959077Z | Wall time: 0.716 s

A matrixplot shows mean expression as a heatmap:

# Compare mean marker expression across cell types.
ds.plots.matrixplot(
    features=["Gcg", "Ins2", "Sst"],
    group_by="clusters",
)

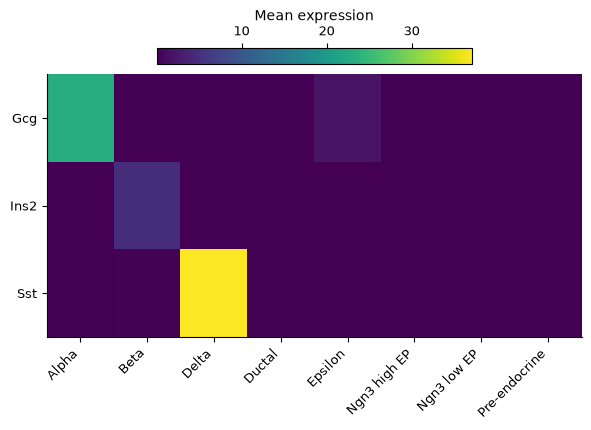

Heatmap of mean Gcg, Ins2, and Sst expression across pancreatic cell types, with strongest respective signals in Alpha, Beta, and Delta cells.

Started: 2026-10-11T18:55:05.679616Z | Wall time: 0.570 s

For matrixplot, use value="fraction" to show the fraction of measured cells above expression_cutoff instead of mean expression. Both plots keep the gene order you supply; group_order controls the order of the displayed groups.

For matrixplot, cluster_groups=True groups similar profiles together by hierarchical clustering and adds a dendrogram. This can reveal relationships that a fixed group order hides. dotplot does not take this option, so set its order with group_order.

Inspect distributions

During QC, count depth and detected-gene distributions can reveal cells that differ sharply from the rest of their group. Use distributions to see this variation within groups rather than relying only on an average.

# Compare count depth and detected genes across annotated cell types.
ds.plots.distribution(
    keys=["RNA_nCounts", "RNA_nFeatures"],
    grouping=cell_types,
)

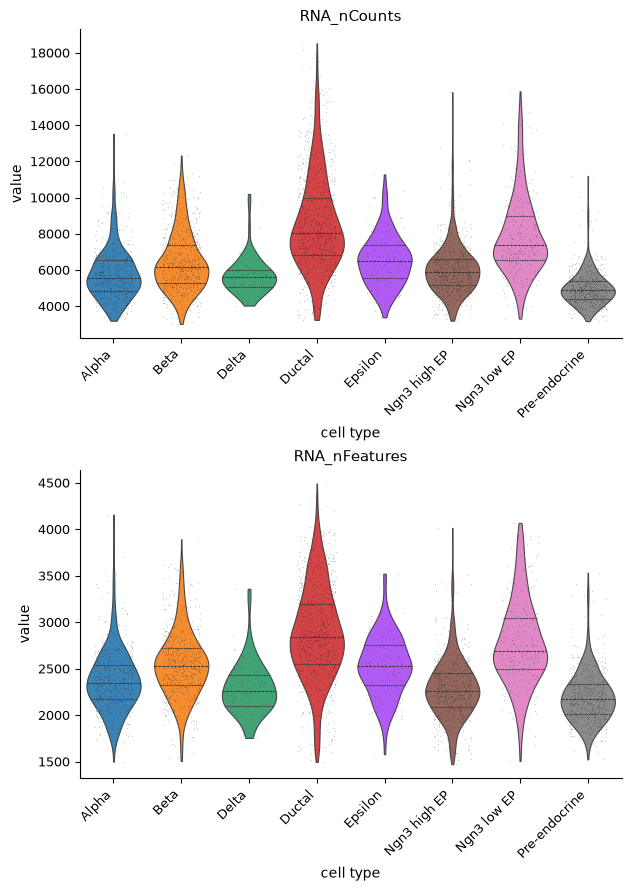

Violin plots of RNA count depth and detected genes across pancreatic cell types. Ductal cells have higher central values and broader upper tails than several other populations.

Started: 2026-10-11T18:55:06.252343Z | Wall time: 0.986 s

The default is a violin plot. kind="box", kind="hist", and kind="ecdf" provide other views. Use groups=["Alpha", "Beta", "Delta"] to focus on those cell types. See Quality control across assays for choosing thresholds from QC distributions.

Stacked violins compare several marker distributions across selected cell types. grouping chooses the labels used to divide cells, while groups limits which labeled populations appear:

# Compare three endocrine markers with stacked violin plots.
ds.plots.distribution(
    keys=["Gcg", "Ins2", "Sst"],
    grouping=cell_types,
    groups=["Alpha", "Beta", "Delta"],
    kind="stacked_violin",
)

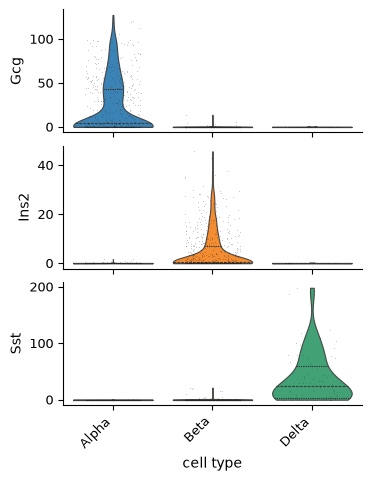

Stacked violin plots compare Gcg, Ins2, and Sst expression in Alpha, Beta, and Delta cells, showing distinct marker distributions within each cell type.

Started: 2026-10-11T18:55:07.241766Z | Wall time: 0.856 s

For a single gene, a violin plot gives more space to inspect its distribution in each cell type. Here, compare Sst in the annotated Delta population with the other populations:

# Compare Sst expression distributions across the annotated cell types.
ds.plots.distribution(keys=["Sst"], grouping=cell_types, kind="violin")

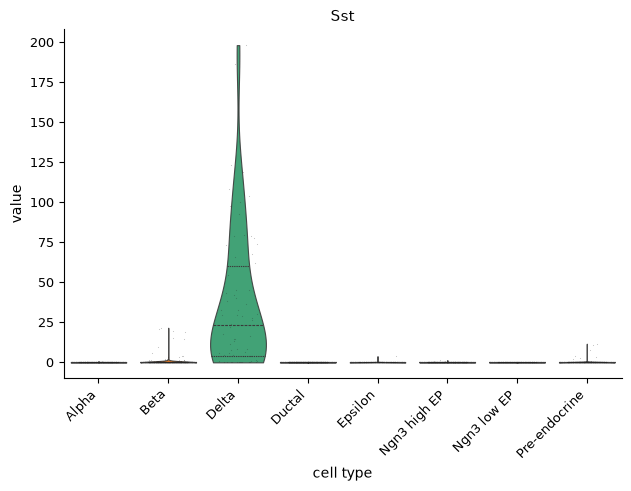

Sst expression violins across pancreatic cell types. Delta cells show a broad distribution of high values, while most other populations remain near zero.

Started: 2026-10-11T18:55:08.101748Z | Wall time: 0.620 s

Changing kind to "box" or "hist" shows the same selected values in another form.

Save a figure

Plots display automatically in a notebook. Set show=False when you want to save or change the figure first. The returned PlotResult provides save and close.

# Choose a persistent directory for figures.
output_directory = Path("figures")

# Create the output directory if needed.
output_directory.mkdir(exist_ok=True)

# Create the figure without displaying it yet.
result = ds.plots.embedding(layout=layout, color_by=cell_types, show=False)

# Choose the filename for the cell-type figure.
figure_path = output_directory / "pancreas_cell_types.png"

# Save the figure to the chosen file.
result.save(figure_path)

# Close the figure after saving it.
result.close()

# Confirm the written filename and its size in bytes.
{"file": str(figure_path), "bytes": figure_path.stat().st_size}
{'file': 'figures/pancreas_cell_types.png', 'bytes': 201721}

Started: 2026-10-11T18:55:08.727312Z | Wall time: 0.603 s

The file stays in figures after the notebook closes. Change the extension to save PDF, SVG, or TIFF. For publication, dpi=300 controls raster resolution and exact_size=True preserves the figure’s physical dimensions. Add provenance_sidecar=True when you also need a JSON record of the selection and plot settings.

Focus on selected groups

Facets show the same layout in separate panels. Here each panel contains one annotated cell type, colored by Ins2 expression. The panels use a shared expression scale.

# Show Ins2 expression separately in Alpha, Beta, and Delta cells.
ds.plots.embedding(
    layout=layout,
    color_by="Ins2",
    facet_by=cell_types.key,
    groups=["Alpha", "Beta", "Delta"],
)

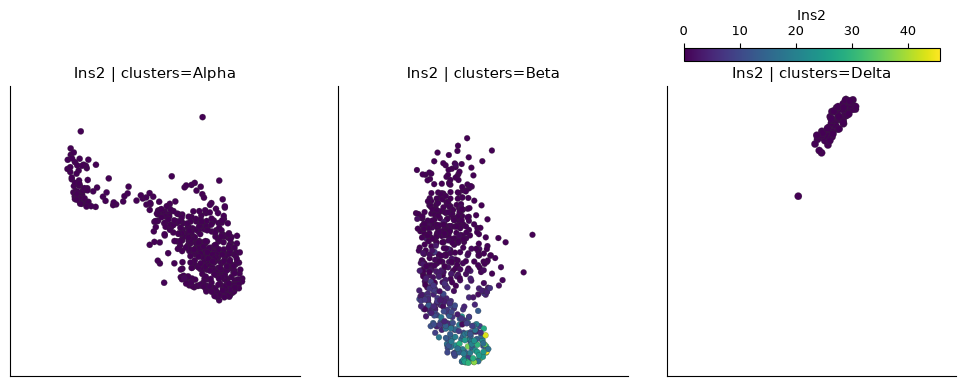

Faceted pancreas UMAPs show Ins2 expression separately in Alpha, Beta, and Delta cells on a shared colour scale. The strongest signal appears in Beta cells.

Started: 2026-10-11T18:55:09.335408Z | Wall time: 0.793 s

A highlight keeps the other cells visible for context:

# Highlight Beta cells while retaining the other cells for context.
ds.plots.embedding(
    layout=layout,
    color_by=None,
    highlight=splt.Highlight(by=cell_types.key, groups=("Beta",)),
)

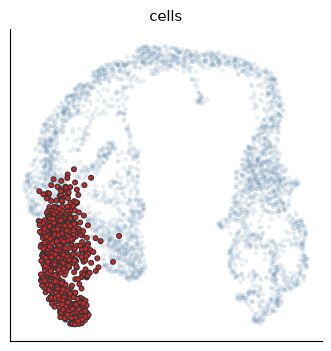

Pancreas UMAP with Beta cells highlighted in red and all other cells shown faintly for context.

Started: 2026-10-11T18:55:10.132659Z | Wall time: 0.374 s

For real replicated studies, sample_by summarizes samples. Composition plots can compare cell type fractions across samples, and a StudyDesign can connect paired observations. See Compare biological conditions across donors for examples with actual study metadata.

Compose panels and choose a style

Pass Matplotlib axes as target when you need control over a figure’s arrangement:

# Create axes for the comparison panels.
figure, axes = plt.subplots(1, 2, figsize=(8, 4), layout="constrained")

# Draw each result on its comparison axes.
for axis, field, title in zip(
    axes, (cell_types, "Ins2"), ("Cell types", "Ins2"), strict=True
):

    # Draw cell-type labels or Ins2 expression in the corresponding panel.
    ds.plots.embedding(
        layout=layout,
        color_by=field,
        target=axis,
        show_titles=False,
        show=False,
    )

    # Label the panel with the result it shows.
    axis.set_title(title)

# Display the completed comparison figure.
figure

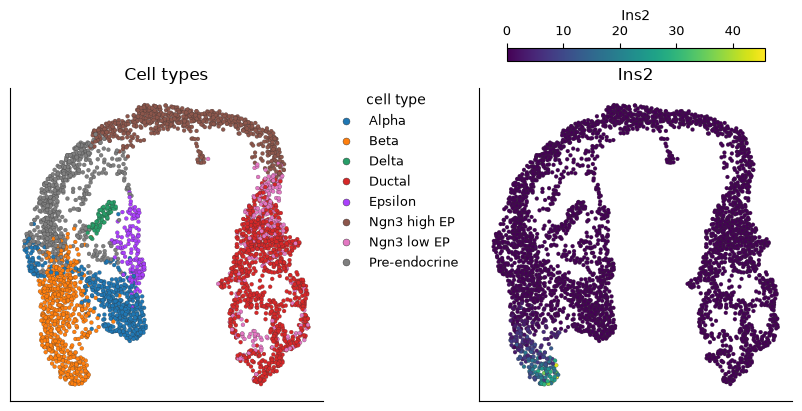

Two aligned pancreas UMAP panels compare published cell-type annotations with Ins2 expression, placing the strongest expression within the Beta-cell region.

Started: 2026-10-11T18:55:10.509492Z | Wall time: 1.777 s

The figure belongs to you because you created its axes. Save it with Matplotlib and close it afterward:

# Choose the filename for the composed figure.
panel_path = output_directory / "pancreas_panels.pdf"

# Save the figure to the chosen file.
figure.savefig(panel_path)

# Close the figure after saving it.
plt.close(figure)

# Confirm the written filename and its size in bytes.
{"file": str(panel_path), "bytes": panel_path.stat().st_size}
{'file': 'figures/pancreas_panels.pdf', 'bytes': 1302703}

Started: 2026-10-11T18:55:12.289936Z | Wall time: 1.904 s

CyteArc’s default theme suits notebooks. Use theme="paper" for smaller labels or theme="dark" for a dark background. Leave point sizes and legend placement at their defaults unless they obscure the data. legend_loc="on_data" puts category labels on the embedding:

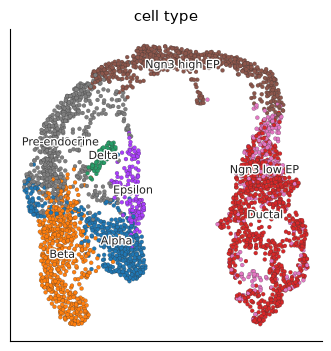

# Place cell-type labels directly on their populations in the UMAP.
ds.plots.embedding(layout=layout, color_by=cell_types, legend_loc="on_data")
Pancreas UMAP with the eight published cell-type names placed directly over their populations instead of in a separate legend.

Started: 2026-10-11T18:55:14.198030Z | Wall time: 0.479 s

Compare this with the first embedding’s separate legend. Labels on the data can make a small number of separated populations easier to find, but may obscure overlapping populations. For composed figures that need a combined provenance record, see cytearc.plotting.compose_results in the Plotting API reference reference.

Plot large datasets as pixels

embedding_raster summarizes a continuous metadata column into pixels. It avoids loading the full column into memory and is useful when a scatter plot has too many overlapping points.

# Summarize count depth into pixels on the embedding.
ds.plots.embedding_raster(layout=layout, color_by="RNA_nCounts")

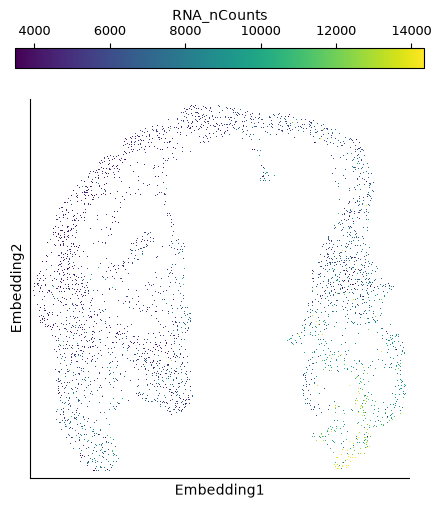

Rasterized pancreas embedding coloured by RNA count depth, with one value summarized per pixel and higher counts visible in part of the right-hand population.

Started: 2026-10-11T18:55:14.680783Z | Wall time: 0.401 s

This small dataset illustrates the call; the memory benefit matters on larger datasets. Use embedding for gene expression. Empty raster pixels are white by default.

Where to find analysis diagnostics

Keep diagnostics near the analysis they help evaluate:

Before interpreting a figure, check its cells, grouping, and expression scale. Add a panel when it answers a new question, rather than only changing the decoration.
